Attic Lift

24 Reviews
$1,845 Out of stock $2,445 Save $600
Product available
Product unavailable

Our motorized lifting platform maximizes the overhead storage potential of your garage. The Attic-Lift comes in various sizes, colors, and lifting capacities, allowing you to modify your overhead storage to fit your needs.

We offer two standard platform sizes. In addition we offer custom platform sizes to meet your needs. Please provide your platform dimensions (up to 48in x 48in) in the Additional notes section at checkout.
Most Popular Out of Stock
20.75 in x 44 in
From
Unavailable
Most Popular Out of Stock
28.75 in x 56 in
From
Unavailable
Most Popular Out of Stock
Custom
From
Unavailable

Select the desired maximum lifting capacity for your motor.
Most Popular Out of Stock
400LBS
Lifting Capacity
From
Unavailable
Most Popular Out of Stock
600LBS
Lifting Capacity
From
Unavailable

Need more cable or an extra remote

Get the most out of your Attic-Lift. Our lifts come standard with 12 ft of travel distance. If you have extra tall ceilings, we offer the option to have cable pre-spooled on the lift to allow up to 24 ft of travel.

Cable Extension [for Attic-Lift] Edit
Cable Extension [for Attic-Lift]
Cable Extension [for Attic-Lift]
Length:
Cable Extension [for Attic-Lift]
From $100

Attic-Lift comes standard with enough cable to travel a vertical distance of 12 ft. Do you have higher ceilings and want the lift to reach the ground?

Add Remove
Extra Remote Control Edit
Extra Remote Control
Lift:
Extra Remote Control
$30

It happens to the best of us that we sometimes lose something—like the remote control for your auxx-lift for example. But, do not worry. You can buy a replacement remote or have a second remote for your lift.

Add Remove
Ceiling Attachment Kit Edit
Ceiling Attachment Kit
Ceiling Attachment Kit
Lift:
Ceiling Attachment Kit
$200

Additional hardware for when your ceilings joists run parallel to that of your lift. Works with Auxx-Lift and Attic-Lift.

Add Remove
$1,845
$2,445 Save $600

or




Attic Lift


Order today. Ships:

See after selection is made

Currently out of stock.

+11,000 Sold
60

Days Money

Back Guarantee

100%

Lifetime

Warranty

100%

Secure

Payment

Attic-Lift Platform
Attic Lift
$1,845 Out of stock $2,445 Save $600

General specs

  • Model: Attic-Lift 1400 Attic-Lift 1600
  • Lifting Capacity: Up to 400 lbs Up to 600 lbs
  • Max. Travel Distance1: 16 ft 22 ft

Ceiling Support

  • Type: (2) 1 5/8" x 60" strut channel
  • Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts
  • Mounting Area: 5' x 5' over 3 joists/rafters
  • Cable: 1/8” Vinyl-coated Steel 7x19 3/16” Vinyl-coated Steel 7x19
  • Cable Strength2: 2,000 lbs 4,200 lbs

Operating Requirements

  • Switch Voltage: 110V / 120V
  • Transmitter: 433.92 MHz
  • Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
  • Min. circuit size: 15 amp

Platform Specs

  • Frame: T-slotted framing rail
  • Material: 6105-T5 aluminum alloy
  • Deking: 3/4 in thick Oak veenered plywood (5-ply)

Motors

  • Type: IP44 (T-Motor)
  • Rated Power: 235 W 680 W
  • Rated Current: 2.2 A 6.0 A
  • Voltage / Phase: 100-120V AC / Single
  • Duty Cycle @ Max. Capacity: 3 min on, 15 min off3

Size and Weight

  • Platform Size: 20.75 in x 44 in 28.75 in x 56 in
  • Ceiling Cutout Size: 22.5 in x 46.5 in 30.5 in x 58.5 in
  • Weight:

What's in the box

  • 2 Motors
  • Controller
  • Remote Control
  • 2 C-Strut Channels
  • Platform
  • Mounting Hardware
Description Part # Qty

1We offer multiple cable length versions. E.g. The 400 lbs version can be equiped with a cable length to allow 16 ft of travel.

2Ultimate tensile strength

3If you run the Attic-Lift continously for more than 3 min at a time, the motors will switch off automatically and require to cool down for 15 min or less.

Heavy Duty Storage Solution

Features & Benefits

  • No heavy lifting

    Eliminate the safety hazard of carrying heavy items up and down the pull-down stairways. Your bulkiest items can vanish from your garage floor and safely stored up in your attic.

  • Wireless Remote-Control

    Equipped with an easy to use remote control allowing you to lower/raise your items. Programmable stopping points allow you to set high and low point parameters preventing your items hitting the floor.

  • Safety

    The robust lifter comes with a wide variety of safety features:

    • Self-leveling platform: The controller monitors and adjust cable speeds to keep platform level.
    • Stop Limit: The attic-lift monitors weight on lift preventing you from overloading it.
  • Custom Platform Sizes

    Besides our two standard sizes of 20.75" x 44" and 28.75" x 56", we offer custom platform sizes per your request.

All-Purpose

Platform Design

Our Horizontal Snap-In Load-Securing Track that can be customized to fit your garage storage needs.

Platform size

The Attic-lift comes in two standard sizes. In addition, we offer custom sizes that meet your specific storage needs.

22.5" x 46.5" Cutout
20.75" x 44"
30.5" x 58.5" Cutout
28.75" x 56"
Platform Frame

The platform frame is constructed with a versatile T-slotted framing rail made from 6105-T5 aluminum alloy. The long sides are made with 2 x 1 solid double T-slot and the short sides use 1 x 1 solid T-slotted beams.

  • Material: 6105-T5 Aluminum
  • Finish: Anodized Silver
  • Tensile Strength: 35,000 psi
Double T-Slot
Double Solid T-slot Beam
Decking

The attic-lift is sheathed with a beautiful 3/4 in thick Oak veneered plywood sheet (5-ply).

Double T-Slot
Double Solid T-slot Beam

Powerful motors

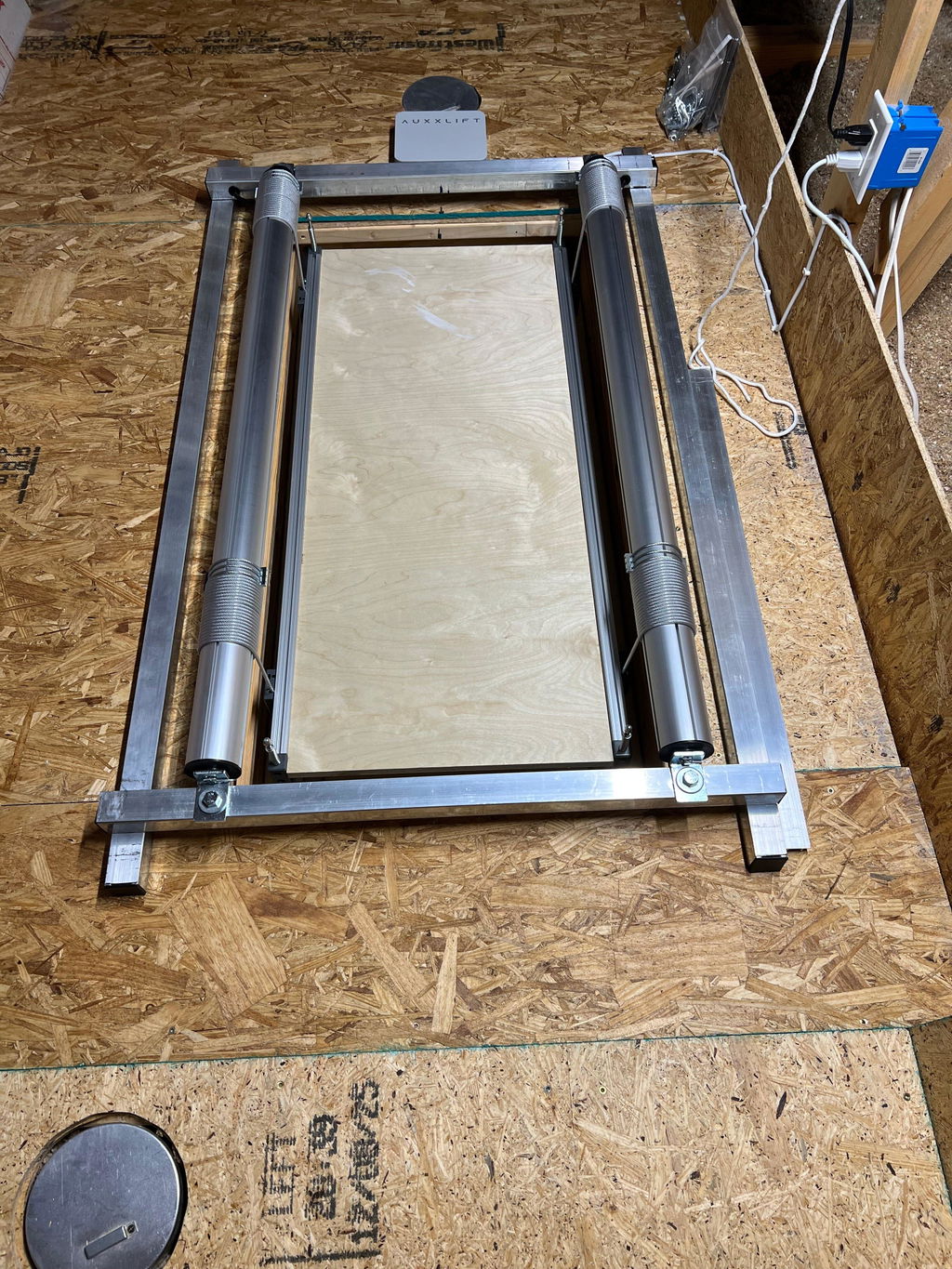

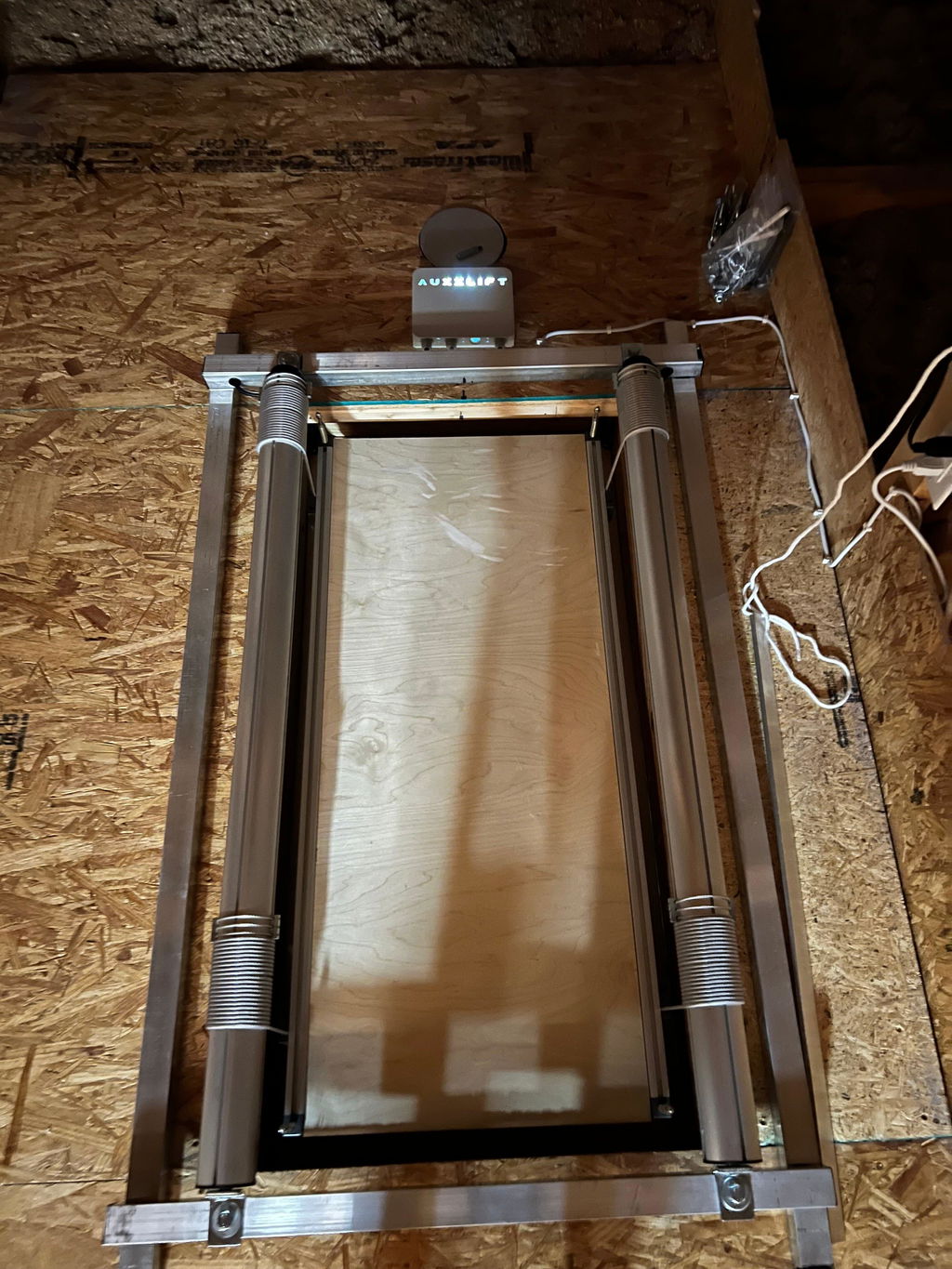

The Attic-Lift uses two tubular motors that are synced via the control unit to ensure the platform stays level.

Both motors are mounted on steel strut channels which are anchors via lag screws on your attic's floor joists/rafters.

  • 1
    Motors

    The Attic-Lift runs on typical household 100-120V AC, drawing 2.3 amps.

  • 2
    Aircraft Cables

    The platform is hoisted by four hot-dipped galvanized 7x19 steel cables made from 133 wires each. The cables are wrapped in a vinyl coating which not only protects your hands but also seals in any lubrications, increasing its useful life.

  • 3
    Vertical Travel Distance

    We offer three versions allowing for 13ft, 16ft, and 20ft vertical travel distances, respectively.

The ultimate storage solution

Our motorized lifting platform maximizes the storage potential of your entire house. Say goodbye to pricey storage units and say hello to a clutter free home with items safely stored away in the attic. The Attic-Lift comes in various sizes, colors, and lifting capacities, allowing you to modify your overhead storage to fit your needs.

24/7
Easy to use
24/7
Remote-controlled
24/7
DIY installation
24/7
Safe and Secure
