Switch orientation of Auxx-Lift rails to run parallel with roof joists.

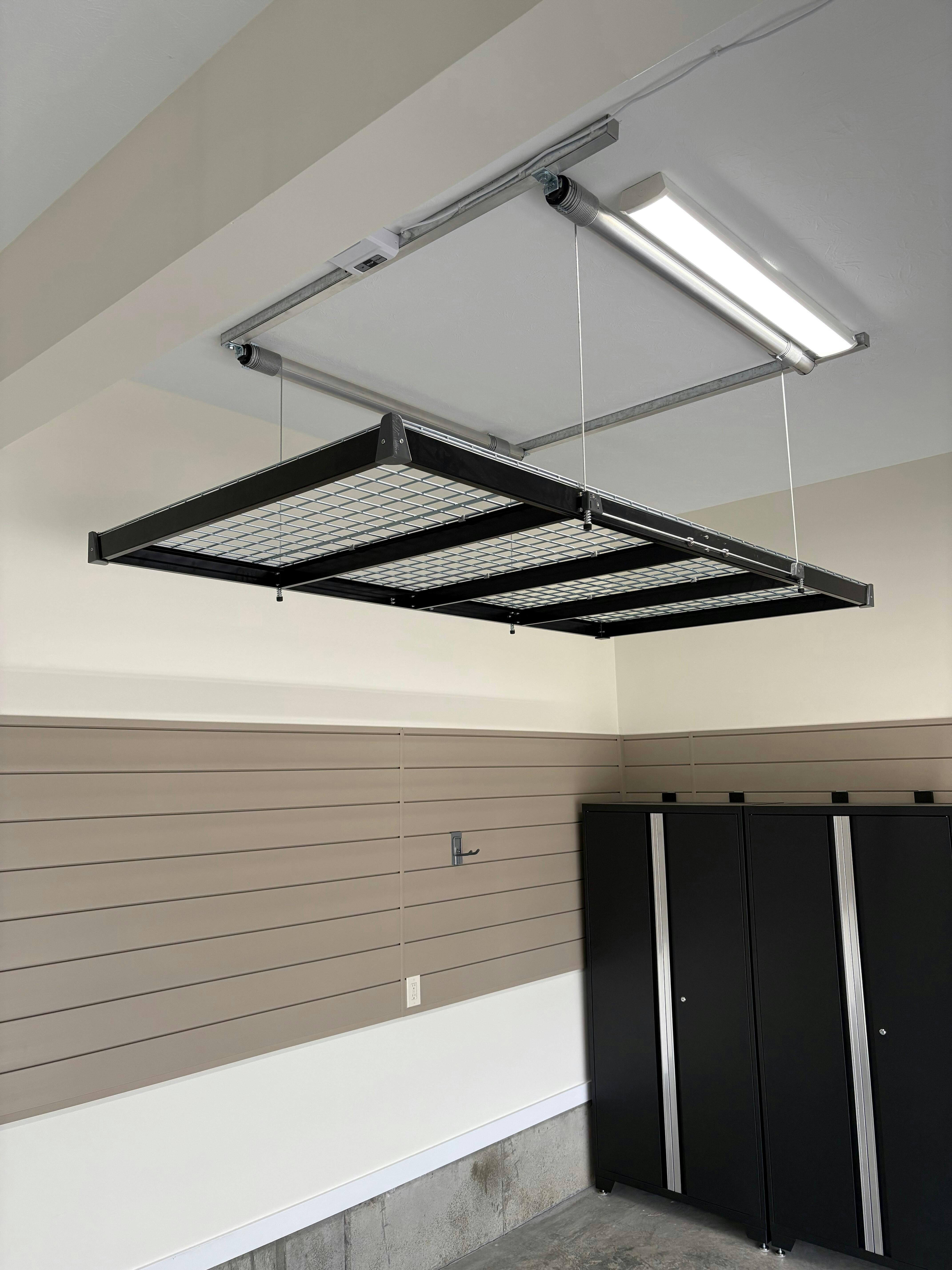

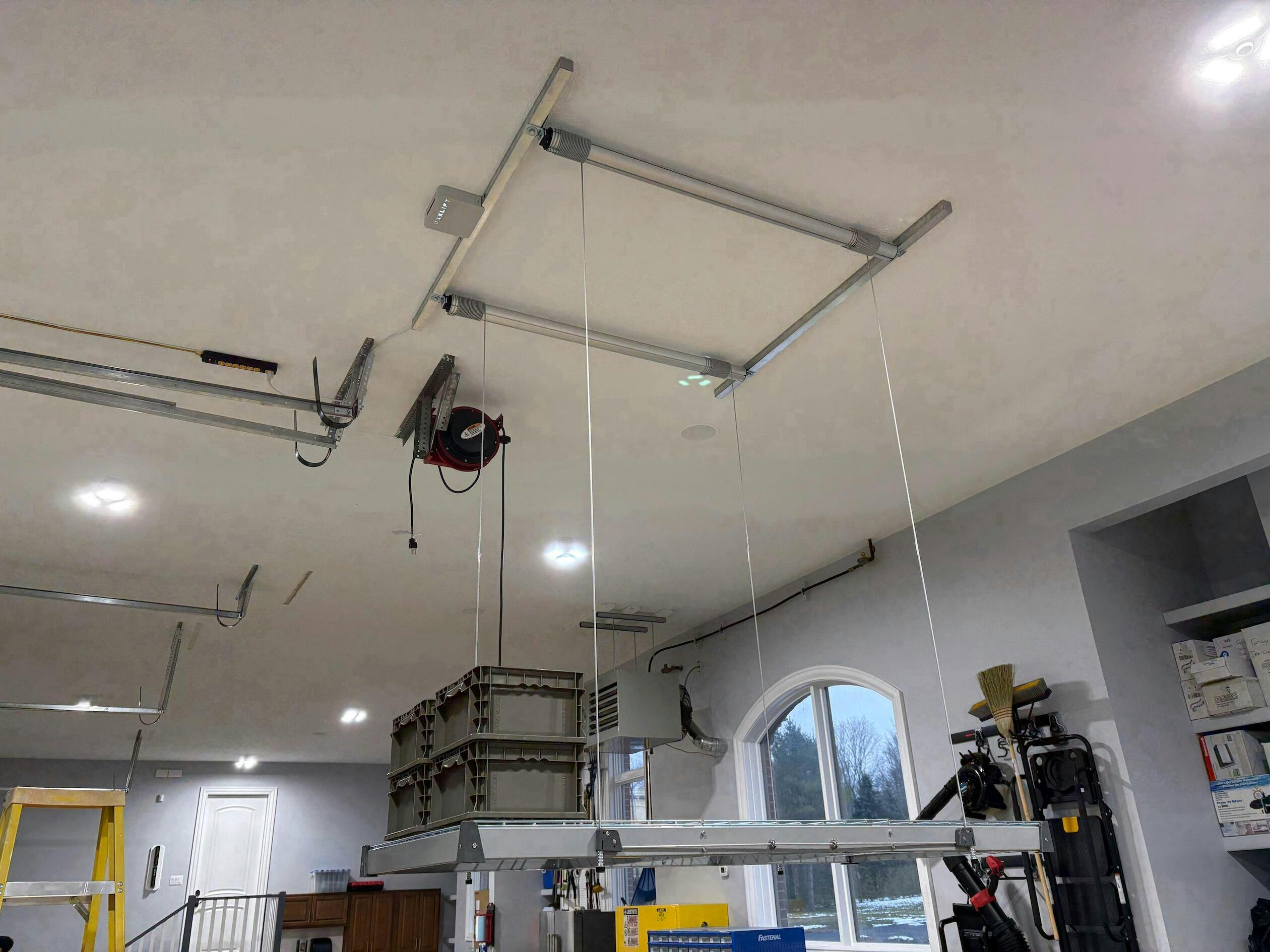

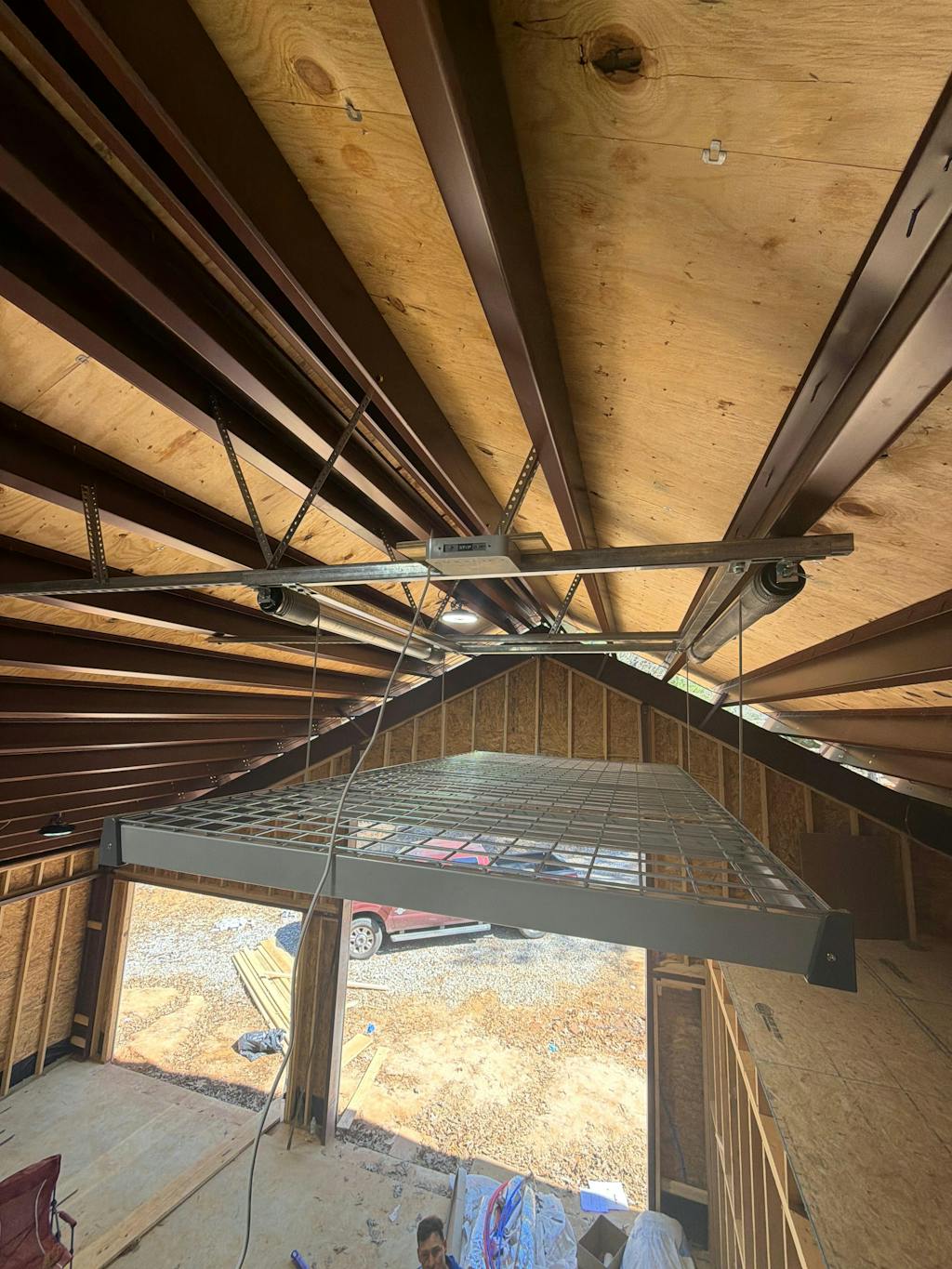

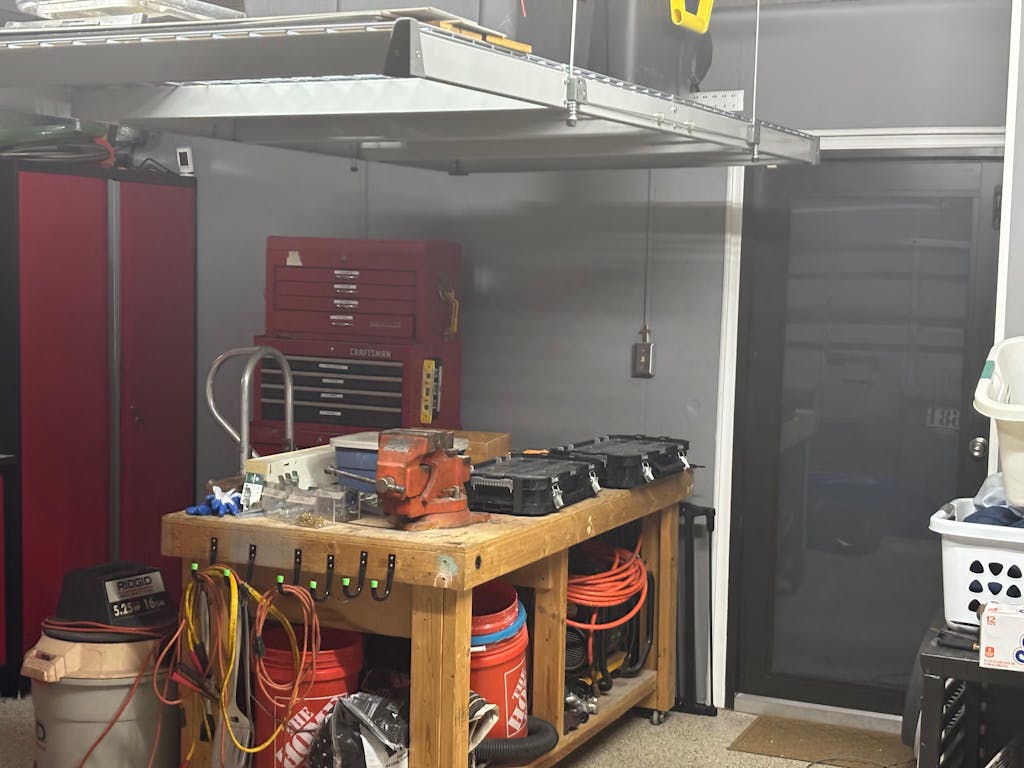

Auxx-Lift
- Lift up to 600 Lbs
- Steel aircraft cables
- Made in USA - Uses SPAX® Fasteners
- Easy installation (but installers available)
- Built-in safety features - the only lift tested to UL-Standards
Addons
Extra high ceiling?
Our hoist systems come standard with 12 feet of cable. Order this 18' cable for lifting in higher spaces.
Auxx-Hooks
Designed specifically for use with the Auxx-Lift. They are great for attaching cargo carriers, kayaks, paddle boards, roof top tents, large kids' ride-on toys, and more! Each package contains two Auxx-Hooks.
Auxx-Guard
Add two rows of real hardwood slats to keep items in place and organized, preventing them from shifting or falling out of the lift.
Additional Hardware Kit
Switch orientation of Auxx-Lift rails to run parallel with roof joists.
Auxx-Fence
The Auxx-Fence consists of four rows of sturdy wooden slats made from real hardwood. The Auxx-Fence attaches to the ceiling brackets.
Installation services
We will connect you with a local installer. Fast turn around time.
Easily store your items with the push of a button
- Lift up to 600 Lbs
- Steel aircraft cables
- Made in USA - Uses SPAX® Fasteners
- Easy installation (but installers available)
- Built-in safety features - the only lift tested to UL-Standards
Product details
General specs
- Model: Auxx-Lift 1400 Auxx-Lift 1600
- Lifting Capacity: Up to 400 lbs Up to 600 lbs
- Max. Travel Distance: 13'-6" (18'-0" w/ Extension) 13'-6" (18'-0" w/ Extension)
- Min. stored height: 8 in
- Speed: Avg. 30sec for 9' ceilings
Ceiling Support
- Type: (2) 1 5/8" x 60" strut channel
- Fasteners: (8) 5/16" x 4" SPAX© Lag Bolts
- Mounting Area: 5' x 5' over 3 joists/rafters
- Cable: 1/8” Vinyl-coated Steel 7x19 3/16” Vinyl-coated Steel 7x19
- Cable Strength: 2,000 lbs 4,200 lbs
Operating Requirements
- Switch Voltage: 110V / 120V
- Transmitter: 433.92 MHz
- Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
- Min. circuit size: 15 amp (Standard household)
Platform Specs
- Thickness: 2.5 inches
- Support Frame: C-Channels (15gauge)
- Face material: 3 x 3 galv. Wire Mesh (4gauge)
Motors
- Type: IP44 (T-Motor)
- Rated Power: 235 W 680 W
- Rated Current: 2.2 A 6.0 A
- Voltage / Phase: 100-120V AC / Single
- Tube Diameter: 70mm (2-3/4 in) 85mm (3-3/8 in)
- Motor speed: 13 rpm 11 rpm
- Duty Cycle @ Max. Capacity: 3 min on, 15 min off
Size and Weight
- Dimensions: 3ft x 6ft, 3ft x 8ft, 4ft x 6ft, 4ft x 8ft
- Weight: 128 lbs
Available Finishes
What's in the box
- 2 Motors
- Controller
- Remote Control
- 2 C-Strut Channels
- Platform
- Mounting Hardware
